Understanding Handrail Height Requirements
Looking for compliant handrail systems? Visit our access platforms page to see how Mechano Max custom design modular solutions meet safety standards.
Ensuring your industrial work platforms meet handrail height compliance standards in Canada is more than a legal obligation — it’s a critical part of your safety infrastructure. Whether you’re managing a manufacturing facility, power plant, or distribution terminal, understanding the minimum handrail height, mid-rail spacing, and overall fall protection strategy keeps your workers safe and your operation compliant with applicable OSHA and CSA standards as well as provincial OHS codes.
Why Handrail Heights Matter on Industrial Platforms
A properly installed work platform handrail system serves as a critical fall prevention measure on elevated surfaces. In industries where platforms are elevated over 1.2 meters (4 feet), a fall can lead to serious injury—or worse. Handrails not only create a visual boundary but also serve as a primary passive restraint mechanism. Safety audits across Canadian industrial zones consistently show that many violations stem from misaligned or incorrectly measured top rails—making height precision essential.
Who Regulates Handrail Standards in Canada?
In Canada, handrail standards are regulated by a combination of national and provincial guidelines, primarily the NBC2020 (National Building Code of Canada 2020) and respective Occupational Health and Safety (OHS) Codes. The Canadian Standards Association (CSA) provides general recommendations, while provinces like Alberta and Ontario issue enforceable legislation.
- NBC2020 & CSA Standards: Recommends a top rail height of 42 inches (±3 inches)
- Provincial OHS Codes: Enforce platform-specific dimensions and load ratings
- OSHA (U.S.): Influences cross-border facilities but is not Canadian law
It’s imperative to understand which jurisdictions and codes apply to your particular facility in Canada.
Top Rail, Mid-Rail and Toe Kick – Key Dimensions
A fully compliant industrial handrail includes three primary components, each with specific dimensional thresholds:
- Top Rail: Typically at 42 inches (±3 inches) above the platform surface
- Mid-Rail: Positioned midway between the top rail and the working surface (~21 inches)
- Toe Kick: At least 4 inches in height, to prevent dropped tools or objects
Each component must withstand 200 lbs (890 N) of force applied in any direction. These measurements are essential not just for compliance, but for stopping slip-and-trip incidents before they evolve into full-scale fall emergencies.
Tip: Integrate height checks into your monthly safety audits to proactively catch rail misalignments or structural fatigue.
Alberta’s Specific Requirements for Handrail Systems

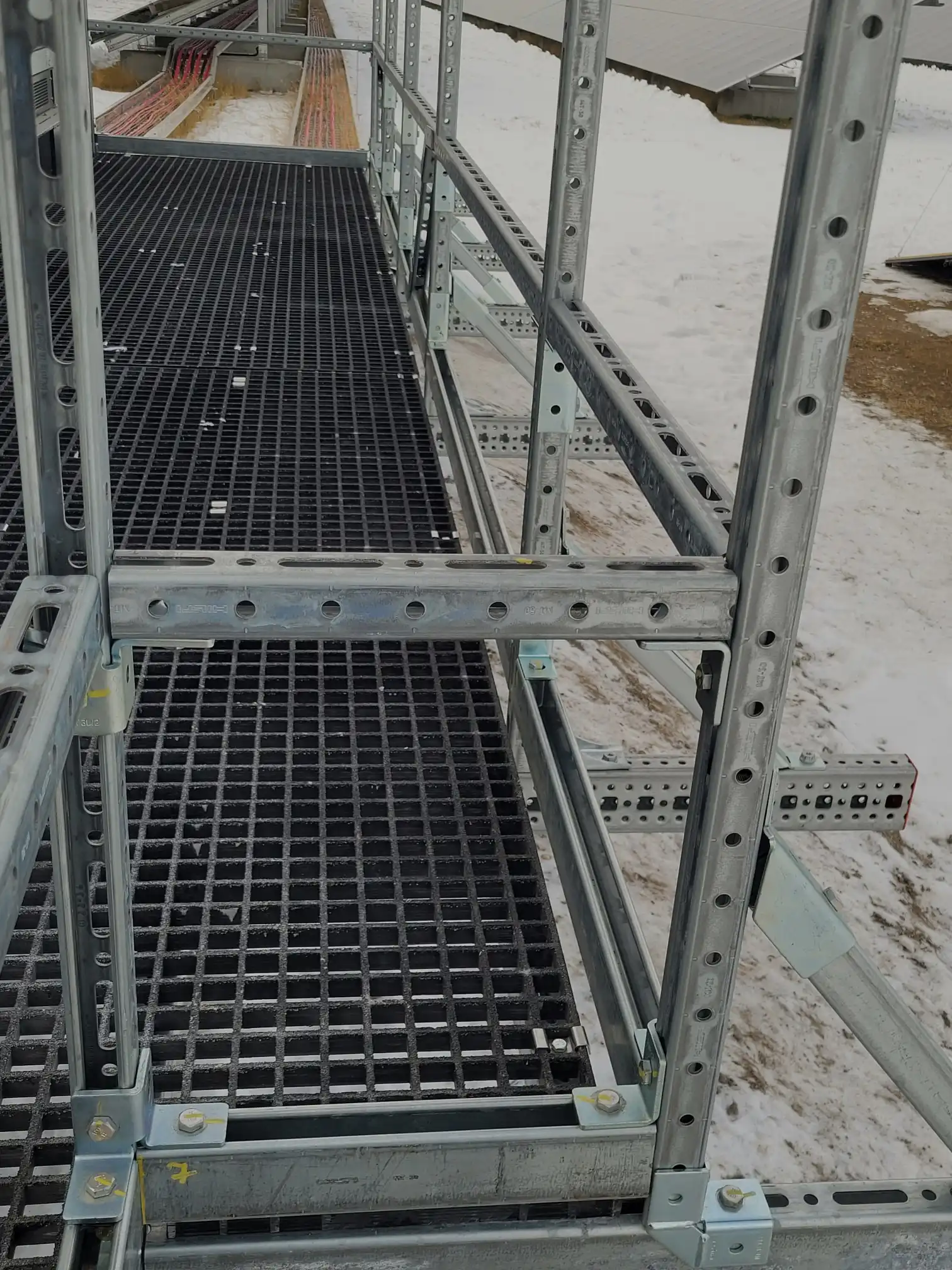

Example of a work platform handrail inspected for height and safety compliance in Canada.
Operating in Alberta? It’s critical that your handrail systems align with the Alberta Occupational Health and Safety (OHS) Code. Alberta’s industrial sectors—ranging from petrochemical plants to distribution hubs—are routinely audited for handrail installation, height accuracy, and load durability. Staying on top of these specifications helps avoid costly penalties, delays, and reputational damage.
Alberta OHS Handrail Code – Dimensions & Load Requirements
Per Section 139 of the Alberta OHS Code, a compliant handrail system must include:
- Top Rail: 42 inches in height (±3 inches)
- Mid-Rail: Equidistant between top rail and surface
- Toe Kick: At least 4 inches high unless otherwise mitigated
- Load Test: Must resist 200 lbs applied in any direction on any rail
Employer and Prime Contractor Responsibilities
In Alberta, both employers and prime contractors share liability for ensuring handrail systems meet provincial standards. This includes conducting inspections, maintaining documentation, and certifying that handrails support specified loads.
- Ensure any subcontractor installations are up to code
- Conduct recurring training for employees working near platform edges
- Have maintenance schedules for all permanent and temporary systems
Failure to enforce compliance can lead to penalties under the Alberta OHS Act, specifically under due diligence requirements.
What Triggers the Requirement for Handrails in Alberta?
A handrail is legally required when workers are exposed to a vertical drop of 1.2 m (4 ft) or more. This includes:
- Industrial platforms within plants and factories
- Scaffolding or portable working surfaces during construction or repair
- Asset access walkways including rooftop HVAC or crane inspections
For any surface that cannot accommodate permanent handrails, certified fall arrest or travel restraint systems must be used per Section 139.1.
Reminder: Alberta inspections often include surprise audits—ensure your documentation and dimensions are always up-to-date.
Best Practices for Design, Installation & Maintenance

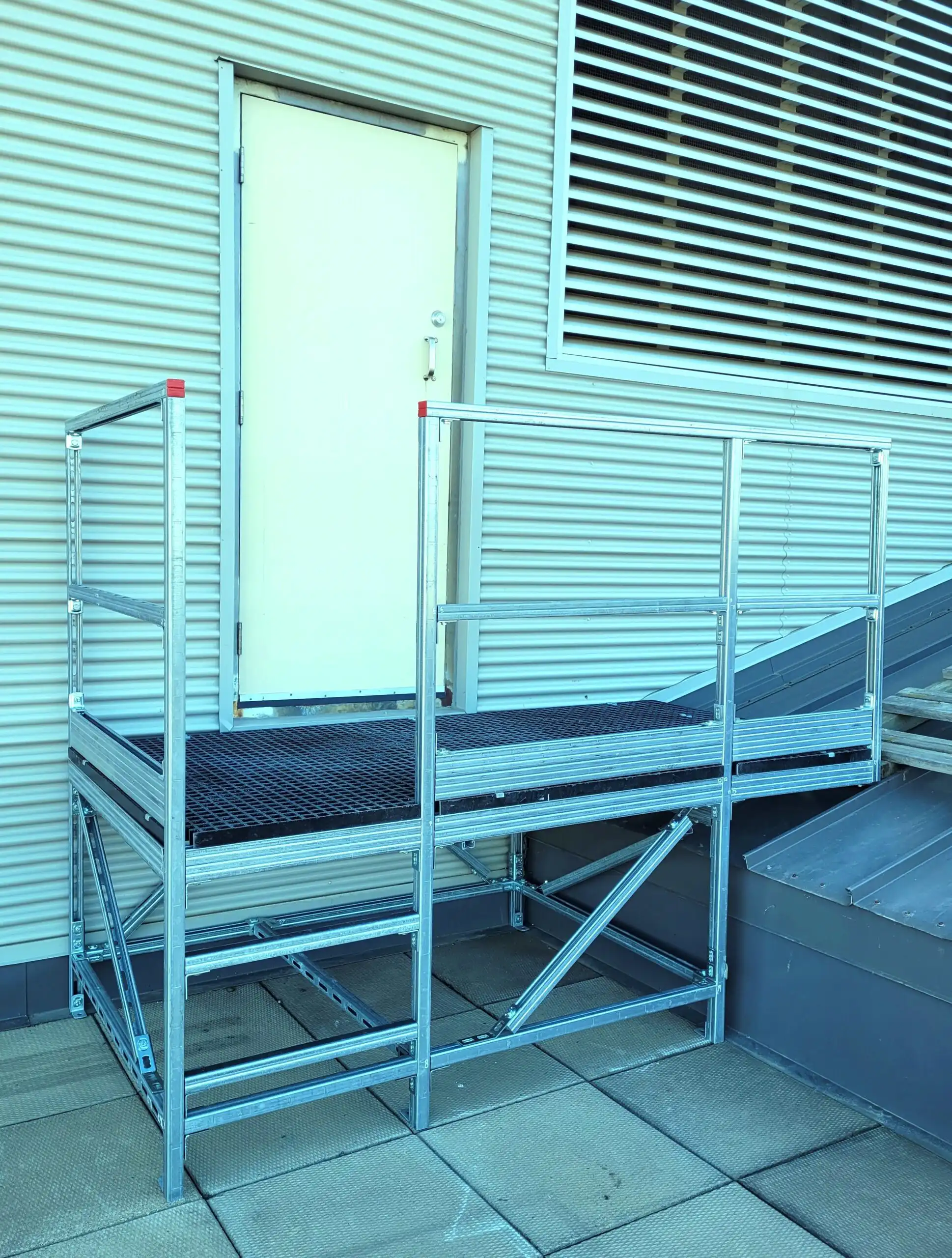

Detailed illustration of work platform handrail components, essential for meeting Canadian height requirements and safety standards.
If your goal is to ensure your work platform handrail system meets applicable OSHA and CSA standards as well as provincial OHS codes, you need more than just rough measurements—a strong design, precision installation, and routine maintenance are essential. Improperly installed or poorly maintained handrails can lead to costly compliance failures, liability exposure, and serious safety risks.
Design Criteria: Load Ratings, Materials, and Codes
A compliant handrail system in Canada must resist a concentrated load of 200 pounds (0.89 kN) applied in any outward or downward direction at the top rail, conforming to applicable OSHA and CSA standards as well as local OHS regulations. Materials vary: Mechano Max uses galvanized steel for all industrial environments due to corrosion resistance and strength. Design specs should also account for worker ergonomics, platform use cases, and site-specific hazards.
- Top rail height: 42 inches ±3 inches
- Mid-rails, toe kicks, and upright posts must meet CSA and local codes
- Mechano Max custom design modular solutions simplify inspection, replacement, and reconfiguration
Proper Installation Procedures That Pass Inspection
Installation starts by anchoring vertical posts securely into the work platform structure. Fasteners must be torque-checked and rated for vibration endurance—especially in high-movement environments like manufacturing plants or outdoor staging areas. Handrails should be square, level, and properly braced to maintain their structural integrity over time.
Common inspection failures include loose posts, under-torqued bolts, and uneven top rail alignment. Ensure your system passes first inspection by following structural guidelines tailored for your Canadian province.
Inspection Frequency and Maintenance Checklists
Routine inspections are vital for long-term compliance. Visual checks should be performed monthly, while formal evaluations should occur quarterly or immediately after an incident. Maintenance reports should document bolt torque, corrosion, and any visible deformations. Addressing issues early prevents forced site shutdowns and escalated fines.
Tip: Assign a safety coordinator to oversee a digital or paper-based checklist logged and reviewed monthly for easy tracking during CSA or OH&S audits.
Maintain a detailed maintenance log to avoid disputes with inspectors down the road.
Common Compliance Issues & How to Avoid Costly Fines

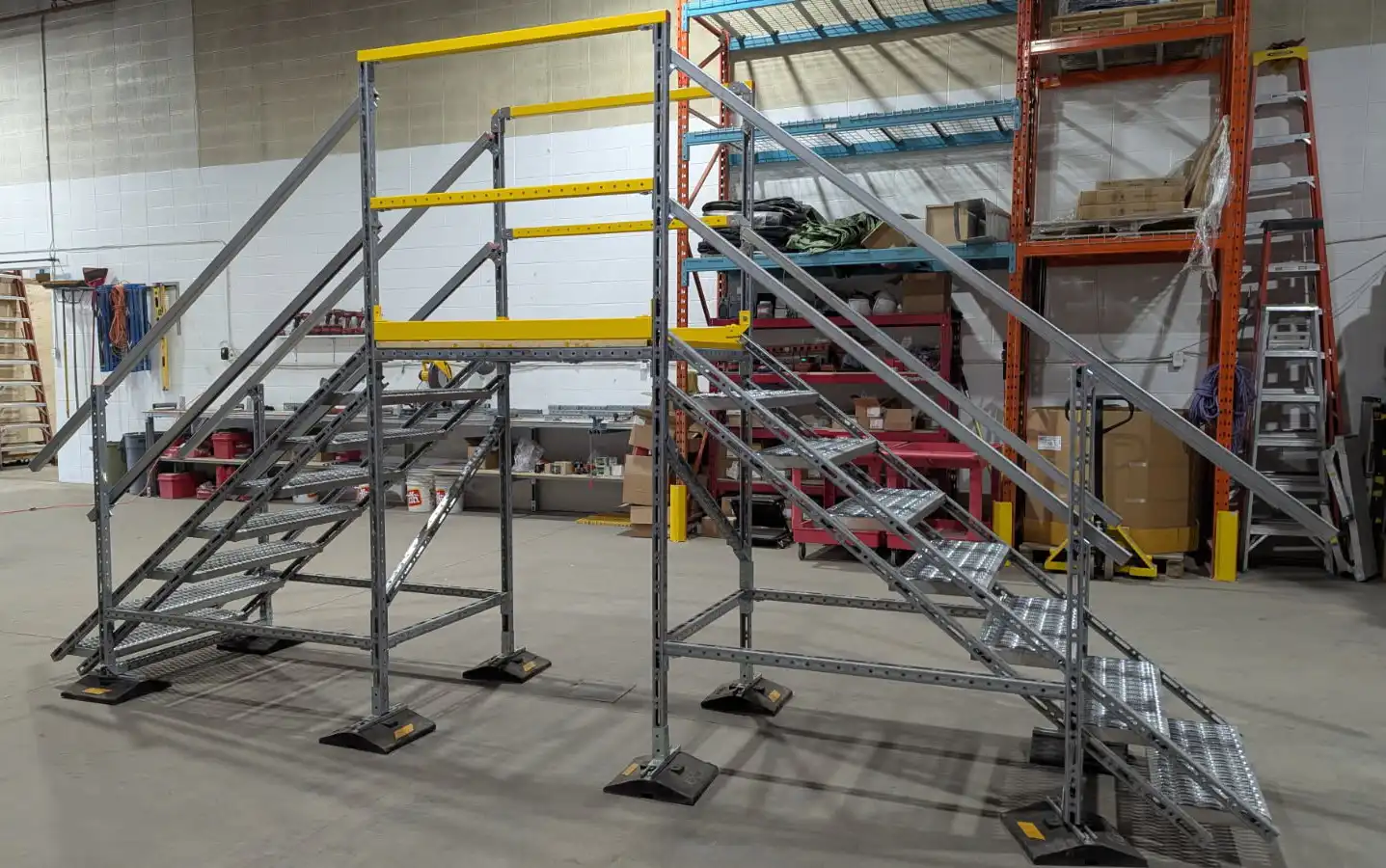

Example of a work platform handrail inspected for height and safety compliance in Canada.
Handrail height violations are among the most cited infractions during worksite inspections across Canada—particularly in provinces like Alberta where enforcement is stricter and fines steeper. Understanding and anticipating what inspectors look for can protect your project budget and safety record.
Most Frequent Handrail Violations in Alberta
The top compliance failures stem from absent or incomplete components, such as missing mid-rails, improperly anchored posts, and inadequate top rail height. These are flagged as safety-critical deficiencies by Alberta OHS officers and can result in work stoppages or escalating penalties.
To avoid issues, always verify that your edge protection systems comply with Alberta’s specific OHS code sections 139 and 145, which cover elevated surface handrail standards for both permanent and temporary installations.
How to Spot a Non-Compliant Edge Protection System
Red flags include:
- Top rail is below or above the 42-inch ±3-inch threshold
- Components are visibly corroded or damaged
- Rails are loose or flex under minimal load
- Inadequate post spacing exceeding code maximums
Use a certified measurement device and checklist before declaring an installation compliant.
What Inspectors Look for During Site Visits
During inspections, officers verify:
- Height compliance via tape measurements from finished platform deck
- Post anchoring and secured connections
- Presence and rigor of safety maintenance logs
- Evidence that the system can withstand 200 lb force
Pro Tip: Keep fastener torque specs and compliance documentation within reach during inspection—readiness often signals quality management.
Compliance Tools, Resources & Local Engineering Support
A digital handrail height calculator and safety compliance checklist help ensure work platforms meet Canadian safety standards.
Maintaining handrail compliance doesn’t have to be guesswork. Mechano Max provides a free suite of tools and regional engineering support to streamline evaluations and prevent violations before they cost you. Whether you’re planning a modular platform retrofit or validating current site installations, these resources can make all the difference.
Downloadable Height Checklists & Infographics
Our field-tested height compliance checklist includes platform-specific measurement instructions and visual aids that cover every component from top rails to toe kicks. Infographics are formatted for print or mobile viewing and assist safety coordinators during audits or internal assessments.
Use them during pre-start inspections, toolbox talks, and supervisor walkthroughs.
Use Our Handrail Spacing & Height Calculator
Use our free 1-minute calculator to confirm top rail and mid-rail spacing based on your platform height and provincial safety requirements. It cross-references CSA and regional codes to validate measurements in real time and is optimized for smartphone deployment onsite.
The calculator is especially useful on mixed-use construction or industrial sites where multiple rail heights and spacing tolerances apply.
Get a Custom Modular Platform with Code-Compliant Handrails
Every Mechano Max modular platform comes pre-engineered with handrail systems designed to local CSA and OHS standards. Our galvanized steel structures ship across Canada and are assembled without welding—all verified by engineer stamped drawings per jurisdiction.
Every Mechano Max platform includes code-compliant edge protection designed to meet local jurisdiction requirements.
