Safe overhead access is one of the most critical challenges in any live industrial facility. Workers need to reach elevated equipment, monitor pipe runs, route cable trays, and cross over process lines — all without shutting down operations. Utility walkway systems solve that problem by providing a permanent, engineered path above ground level. At Mechano Max, we design and build modular steel walkway systems that go up fast, meet code, and keep your team safe.
What Are Utility Walkway Systems?
A utility walkway system is an elevated access structure built to give workers a safe, dedicated path through or above an industrial facility. Unlike a basic catwalk, a well-engineered utility walkway carries specific design loads, meets NBC2020 requirements, and integrates with your existing structure.
These systems serve a wide range of functions. Common applications include overhead walkways above process equipment, access walkways along rooftops, cable tray walkways for electrical routing, and pipe monitoring walkways above pressurized lines. An access work platform is often part of the same system — giving technicians a staging area at the top of the walkway route.
The term “utility walkway” reflects their purpose: they’re functional infrastructure, not temporary scaffolding. They stay in place, carry daily traffic, and need to hold up in harsh indoor and outdoor environments year-round.
Types of Industrial Walkway Systems
Industrial walkway systems fall into a few main categories. Understanding the differences helps you pick the right solution for your facility’s layout and use case.
Fixed vs. Modular Bolt-Together — Traditional fixed walkways are built in place using conventional construction methods. Modular bolt-together systems like ours use pre-engineered components that connect with standard hardware. There is no hot work, no flame, and no need for welding permits or fire watch crews.
Overhead vs. Ground-Level — Overhead and elevated walkways span above process equipment, conveyors, or pipe runs. Ground-level access walkways run at grade, often through tight corridors or between equipment banks. Both types benefit from modular design — components ship flat, assemble on site, and can be reconfigured if your layout changes.
Interior vs. Exterior/Rooftop — Interior walkways must work in confined spaces and around existing structure. Exterior and rooftop industrial walkways face UV, freeze-thaw cycles, and wind loads. At Mechano Max, all our structural components are galvanized for corrosion resistance in both environments. Fiberglass grating options are available for rooftop and chemical environments where added slip resistance matters.
Key Design Considerations
A well-designed industrial walkway system starts with the right engineering inputs. Getting these wrong leads to expensive changes — or worse, a system that fails an inspection.
Load Capacity — Industrial access walkways typically need to carry 300–500 lb/ft² live loads, plus point loads for equipment and maintenance carts. Our engineer-stamped drawings specify the exact load ratings for every design, so you know the system will perform under real working conditions.
Handrail Requirements — Elevated walkways require handrails on open sides. Heights, spacing, and load ratings follow applicable OSHA and CSA Standards. We design handrail systems into every elevated walkway — they’re part of the engineered package, not an afterthought.
Grating Type — Steel grating works well for most indoor industrial environments. Fiberglass grating — supplied by Accurate Screen and Grating — is the right choice for rooftop, chemical exposure, or non-conductive requirements. Both options are available as part of our modular utility walkway systems.
Elevation and Clearances — Overhead and elevated walkways must provide adequate clearance above process lines, conveyors, and electrical runs. We review your facility drawings and factor in NBC2020 headroom requirements before issuing any design. All designs also meet NBC2020 requirements for structural loads and deflection limits.
Surface Conditions — Rooftop and outdoor elevated walkways need to account for drainage, expansion, and surface attachment. Our systems use Hilti MT System certified structural components, which are ICC-ES approved and CSA standards compliant, making them suitable for both concrete and structural steel attachment points.
Why Modular Bolt-Together Walkways Outperform Traditional Builds
Traditional site-built walkways require trades coordination, welding crews, hot work permits, and long installation windows. In a live facility, that’s a serious problem. Modular bolt-together systems eliminate nearly every one of those delays.
No Hot Work Permits — Because there is no welding or cutting on site, our modular walkway installations don’t require hot work permits. That removes a major bottleneck, especially in oil and gas facilities, refineries, and chemical plants where hot work permitting can take days.

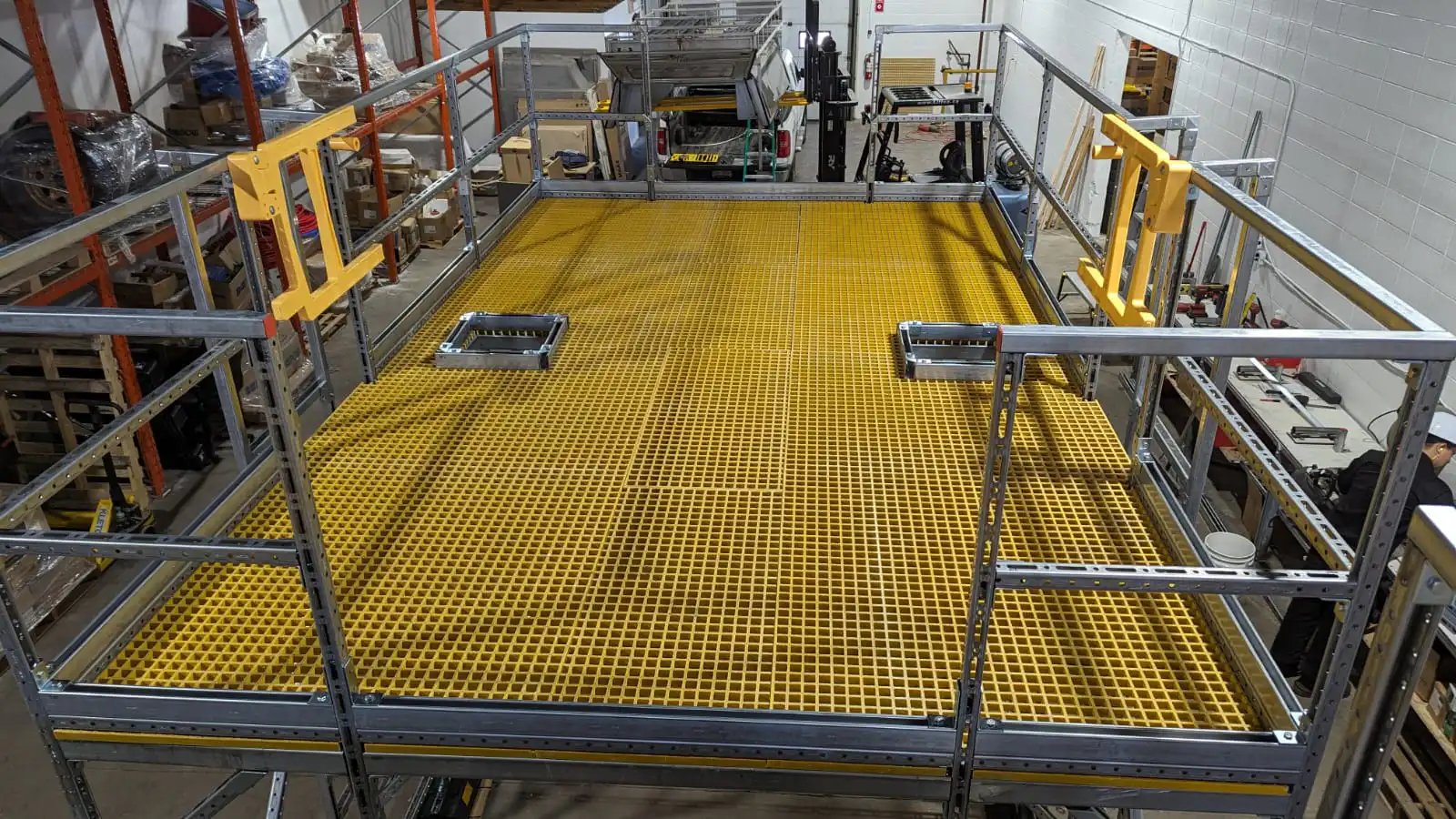

Installs in Hours, Not Days — We pre-build and check components in our Calgary shop before they ship. On site, crews connect the modular pieces with basic tools. Most standard utility walkway and access walkway installations go up in hours, not days. That means less downtime for your operation.
Relocatable When Your Needs Change — Fixed-in-place walkways become a liability the moment your facility layout changes. Our bolt-together systems unbolt and reassemble in a new configuration. You don’t pay for new engineering — the modular design handles it.
Engineer-Stamped Drawings Included — Every Mechano Max walkway system comes with engineer-stamped drawings. Our engineering partner, Kitalpha Engineering Inc. (APEGA Corporate Permit #P13337), stamps drawings for AB, BC, YT, and NT/NU. That gives you a fully documented, code-compliant system ready for your records.
Works in Live Facilities — Because we pre-build in the shop and bolt together on site, we can work around active operations. There’s no need to shut down equipment banks or isolate entire areas. Most installations complete during a scheduled maintenance window.
Industrial Applications at Mechano Max
We’ve built utility walkway systems across a wide range of industrial sectors in Western Canada. Here are some of the most common applications our team delivers.

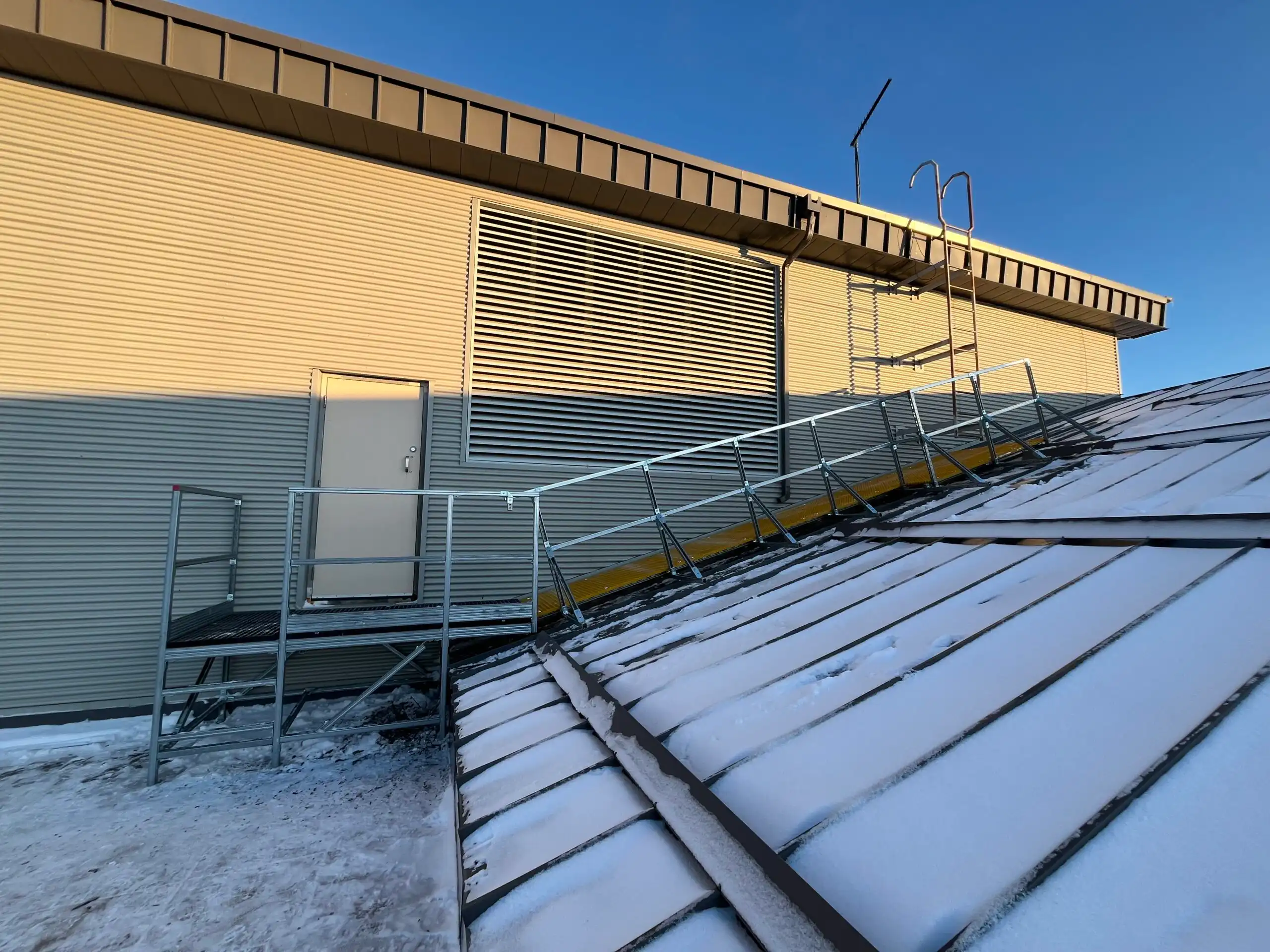

Rooftop Walkways — Facilities with rooftop HVAC, exhaust fans, or electrical equipment need a safe, permanent path for maintenance crews. Our rooftop elevated walkways use galvanized structural members and fiberglass grating to stand up to Alberta’s freeze-thaw cycles. Check out our full range of stairs, walkways, and crossovers for rooftop options.

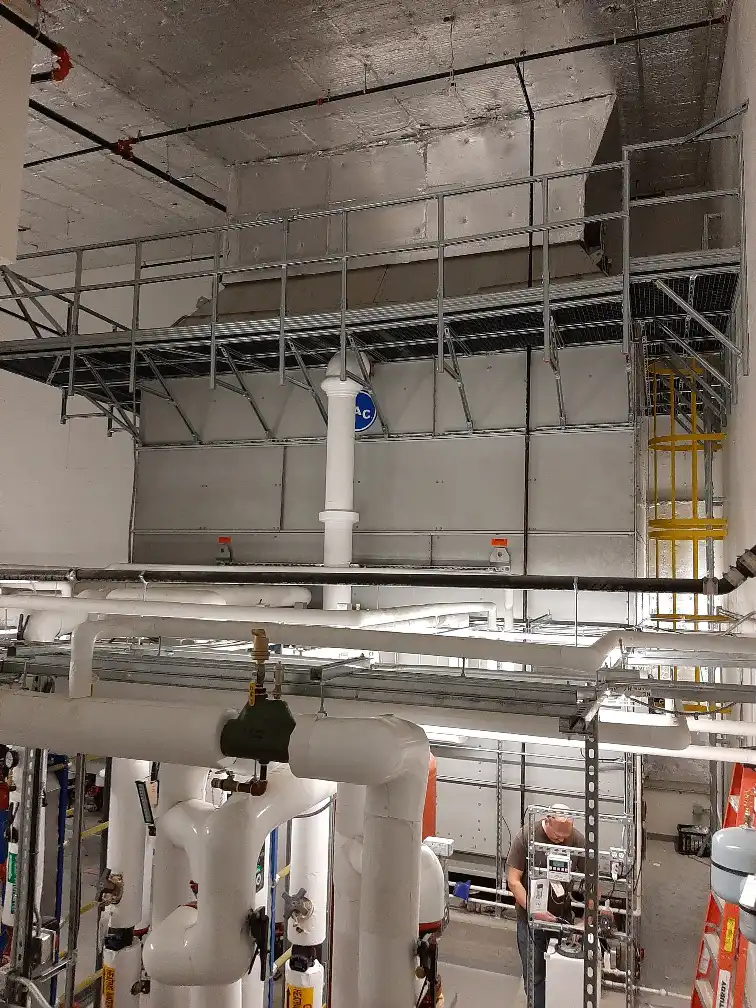

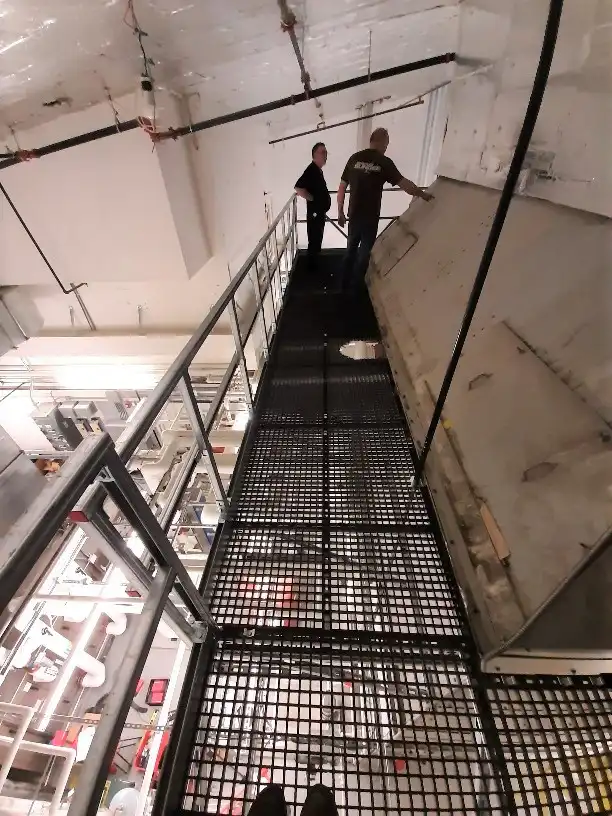

Cooling Tower Access — Cooling towers require routine inspection and chemical treatment. We’ve designed and installed cooling tower access walkways that connect multiple levels with safe, code-compliant access paths. These systems often include crossovers above pipe runs and access work platforms at the top of the tower structure.
Cable Tray Walkways — Cable tray systems often run above the process floor, with limited access for installation and maintenance. A cable tray walkway runs alongside the tray at working height, giving electricians a stable, handrailed surface to work from. Our electrical and instrument supports integrate directly with these walkway systems.
Crossovers — Industrial crossovers span conveyors, pipe runs, or process lines to give workers a safe crossing point. Our modular crossovers include handrails on both sides and self-closing safety gates. The bolt-together design means we can fit crossovers into tight corridors with minimal disruption to ongoing operations.
Pipe Monitoring Walkways — Facilities with large pipe runs need regular inspection access above grade. A pipe monitoring access walkway runs parallel to the pipe, giving operators a stable surface at the right working height. These often tie into our pipe support systems for a fully integrated solution.
Frequently Asked Questions
Do I need an engineer-stamped drawing for a utility walkway system?
In most industrial jurisdictions — and certainly in Alberta, British Columbia, Yukon, and the Northwest Territories — you will need engineer-stamped drawings before a walkway system can be installed in a regulated facility. Mechano Max provides engineer-stamped drawings with every project through Kitalpha Engineering Inc. We deliver the documentation; your team handles the permit application with the appropriate authority having jurisdiction.
How long does installation take compared to a site-built walkway?
A comparable site-built walkway typically takes several days to a week when you factor in trade coordination, welding, and inspections. Our modular bolt-together utility walkway systems install in hours using basic hand tools. Pre-building in our Calgary shop before shipping to your site removes most of the on-site labour time.
Can the walkway system be moved or expanded later?
Yes — that’s one of the core advantages of our modular approach. The bolt-together design means individual sections unbolt cleanly and reassemble in a new configuration. If your facility layout changes or you need to expand the system, we can add sections or redesign the layout without starting from scratch.
What grating options are available for an elevated walkway?
We offer fiberglass grating for standard industrial environments and fiberglass grating for rooftop, chemical, or non-conductive applications. Fiberglass grating is supplied by Accurate Screen and Grating and is suitable for environments where corrosion or conductivity is a concern. Our engineers specify the right grating type based on your load and exposure conditions.
Do your walkway systems meet NBC2020 and safety standards?
All Mechano Max designs meet NBC2020 requirements for structural loads, deflection, and egress. Our systems are built with Hilti MT System certified structural components that are ICC-ES approved and CSA standards compliant. Handrail systems meet applicable OSHA and CSA Standards. For more on Canada’s building code standards, see the National Building Code of Canada 2020 published by the National Research Council of Canada.
Get Your Utility Walkway System Designed Today
At Mechano Max, we’ve been building modular industrial access solutions for over 10 years. Our utility walkway systems go up fast, meet code, and outlast the environments they’re built for. Whether you need a rooftop elevated walkway, a cooling tower access walkway, or a full cable tray walkway system, we’ll design it to fit your facility exactly.
Visit our stairs, walkways, and crossovers page to see the full range of solutions we offer, or call us directly at +1 403 397 7926. Our team is ready to help you get safe, engineered overhead access installed with minimal downtime. Built Fast, Built Better.
